Automatic polishing liquid feeder Auto Drip Device
Back to the listThe drip device that can automatically drop/collect abrasives.

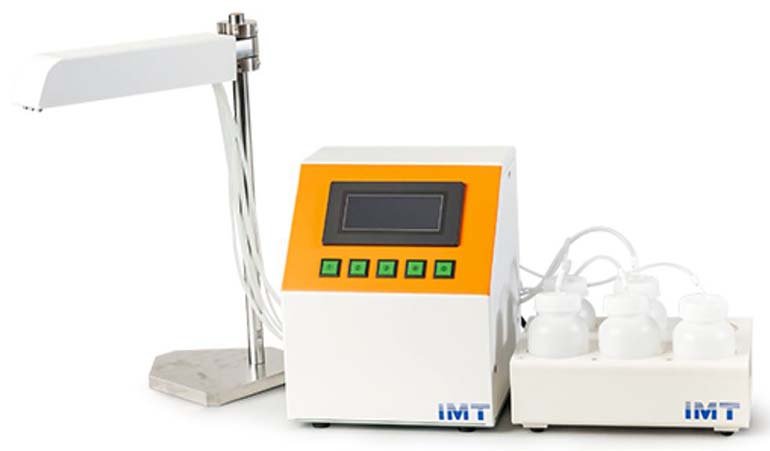

The 5-bottle type is equipped with an auto-change function and can store 16 dripping conditions.

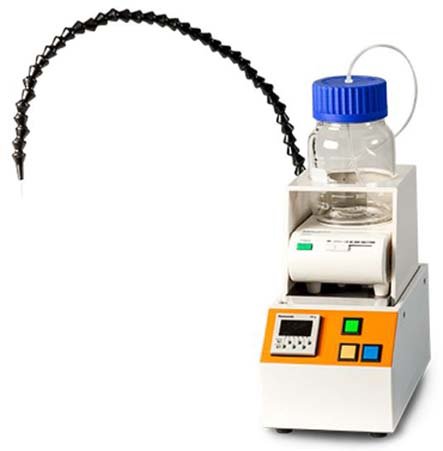

The 1-bottole type can be selected from two types, with or without stirrer.
5-bottle type | 1-bottle type | |
Function | Settable stop time Configurable dropping interval and amount Manual and automatic drops |
Settable stop time Configurable dropping interval and amount Manual and automatic drops |
---|---|---|
Configuration | Memory for up to 16polishing conditions Simultaneous dropping of two polishing liquids Conditional auto-change function |
Stirrer or stirrer-less types available |
Reverse | Automatic recovery of 1 or all 5 bottles possible | Includes polishing liquid recovery button |
Size of Main Unit | Controller: W220×D250×H265mm Bottles holder: W240×D710×H85mm |
W150×D290×H380mm |

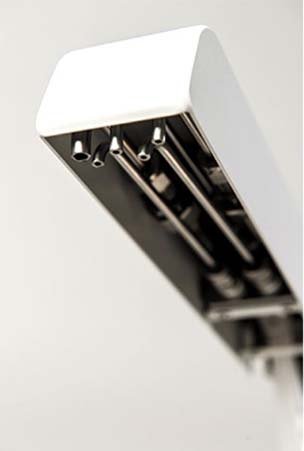

Nozzle | D365×H420㎜ Nozzle height can be adjusted and nozzle can be rotated 45° |
Flexible nozzle A thicker tube and nozzle is provided for use with colloidal silica and alumina |
Power Supply | Single-phase 100V or 200V |
