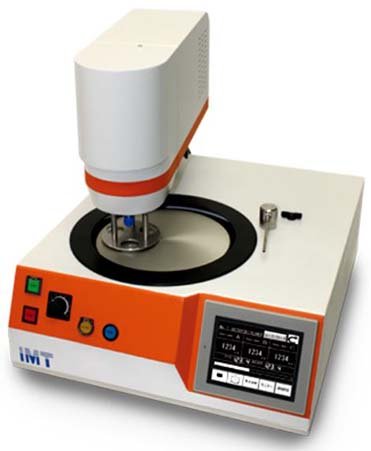

Polishing Machine with Griding Amout Control Function Q-roy
Back to the list
Removal values in the Z-axix direction(height) can be set individually for each of the three specimens.
The grinding value can be set in 1 μm units and automatically stops when the grinding value is reached.
Automatic polishing is also possible in time mode.

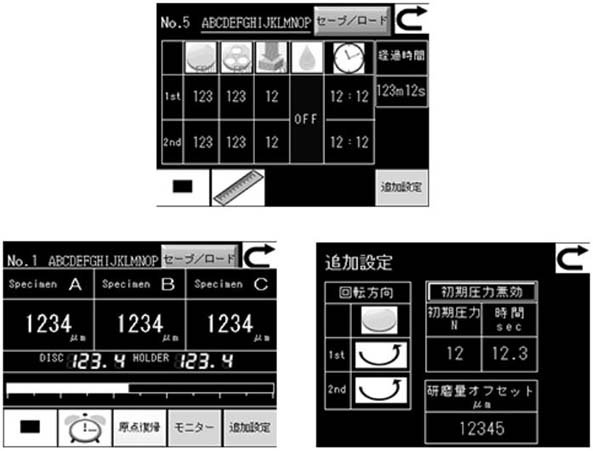

Easy to operate with a large button touch panel and convenient analog buttons.
Main Specifications
- Compact polishing machine with some convenient automatic function
Removal values in the Z-axix direction(height) can be set individually for each of the three specimens.
Even after the first specimen reaches the set removal value, polishing will continue without the remaining two specimen removal values being reset.
- Timed polishing control
Polishing can also be controlled based on time.
Two different movements can be programmed into a single process.
- Automated with Abrasive Auto Drip

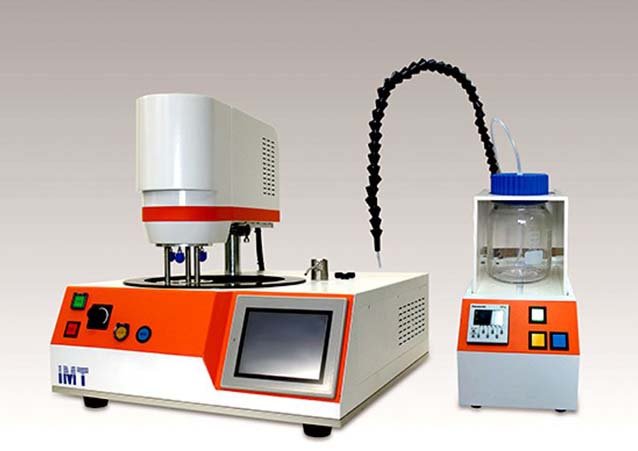

With the addition of the “Abrasive Auto Drip Device”, automatic finish polishing can be performed without the assistance of the operator.
- Grinding value error can be corrected
Grinding errors occur due to runout of the disk and elasticity of the buff.
It has an offset function that can correct the grinding error by inputting the runout of the disk surface in advance.
| Disc Size | High-precision grinding disc: φ223mm or φ200mm High-precision polishing disc: φ200mm Magnetic disc: φ200mm discs sold separately |
|---|---|
| Polishing Function | Individual-load polishing |
| Rotation Speed | Disc: 50 to 300rpm(reversible) Holder: 50 to 200rpm |
| Number of Specimens | Max. 3×φ25, 30, or 40mm Production of other custom sizes is possible. (holder sold separately) |
| Applied Pressure | Individual load: 5 to 30N per specimen |
| Operation | Touch panel + analog button + rotation speed knob Selectble between ”Removal value auto stop” or “Timed auto stop” Automatic water supply Start/Stop＋Analog water button |
| Removal values | Directional (Z-axis) removal values between 5μm and 5mm can be input per specimen Up to H20 mm can be set Grinding up to 5 mm is possible 1 μm unit setting |
| Head Mechanism | Heead lowering/raising, with manual polishing when the head is lifed |
| Air Souece | 0.5 to 0.7MPa Separate regulator also required for sources above 0.7MPa) |
| Motor Output | Head: 60W brushless motor Base: 120W brushless motor |
| Power Supply | Single-phase 100V or single-phase 220V |
| Dimensions/Weight | W480 x D670 (up to the drain) x H500 (650 when the head is raised) mm, 45 kg |
