Holder Rotation Device SP-L1
Back to the listSP-L1 is a specimen rotating machine to be attached to the polishing machine IM-P2

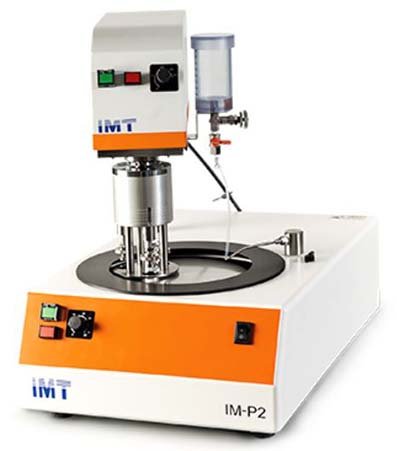

When polishing an pressed specimen, if SP-L1 is attached to the polishing machine IM-P2, automatic polishing becomes possible.
The ability to change the head rotation speed of the SP-L1 makes, it possible to grind workpieces without losing parallelism by ensuring the holder and disc rotate at the same speed and in the same direction.
Main Specifications
- Take advantage of the individual load system!
When grinding material such as for electronics up to an observed target line(via holes,etc), individual loading makes it possible to take out specimens as they reach the target grinding position.

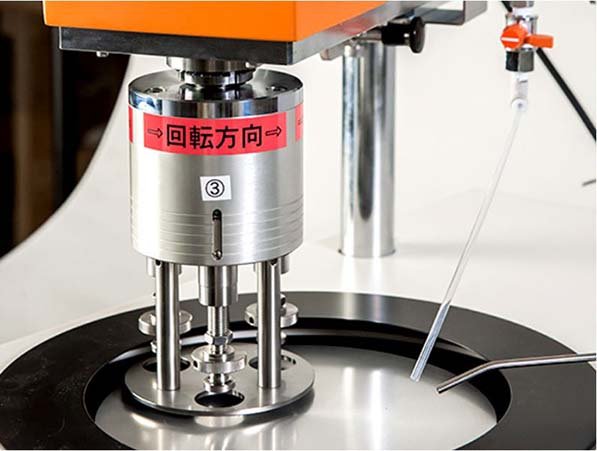

UP to three specimens can be set. - Machine workpieces without losing parallelism
With individual load systems, the polishing surface of specimens may become titled, causing a pencil-like shape to occur.
The ability to change the holder rotation speed of the SP-L1 makes it possible to grind workpieces without losing parallelism by ensuring the holder and disc rotate at the same speed and in the same direction based on the recommended polishing method.Fine polishing: DIA+polishing clothCoarse polishing: Polishing paper or polishing pad Disc rotation speed: 200rpm/Holder: 200rpm Fine polishing: DIA+polishing cloth Disc rotation speed: 65 to 150rpm/Holder: 65 to 165rpm - Semi-automatic polishing is possible! Lubricator standard included!
Automatic polishing is possible by attaching SP-L1 to Polishing Machine IM-P2.

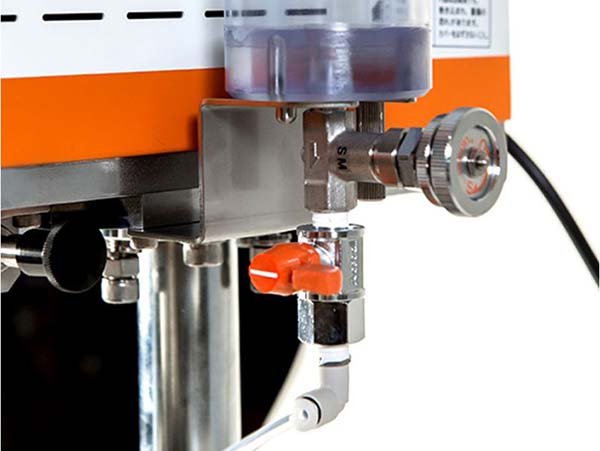

A lubricant drip unit “Lubricator” with a drip amount adjustment function and an open / close valve is included as standard.
SP-L1 Specifications
Rotation Speed | 0 to 200rpm, adjustable |
---|---|
Number of Specimens | Selectable from 1 to 3 |
Applied Pressure | (Spring-type individual load) 10 to 40N per specimen |
Specimen Holder | φ25mm, φ30mm, or φ40mm ×3 specimens each Production of other custom sizes is possible. Holder sold separately |
Lubricator | Standard accessory (Analog flow-rate adjustment type |
Power | single-phase 100V/single-phase 220V Plug into the IM-P2 outlet 75W motor |
Dimension/Weight | W460×D655×H550(685mm when the head is lifted) mm / 50kg (Values are for IM-P2 installed.) |
IM-P2 Machine Specifications
Disc Size | Grinding disc: φ223mm or 200mm or 250mm Polishing disc: φ200mm or 250mm Magnetic disc: φ200mm or 250mm discs sold separately |
---|---|
Rotation Speed | 50 to 400rpm, adjustable(50/60Hz common) |
Supply/drain water function | Opening/closing of water supply cock.(attached water supply/drain hose) |
Power Supply | Single-phase 100V, 50/60Hz, or single-phase 200 to 220V 50/60Hz 200W geared motor |
Dimensions/Weight | W390×D655(to drainage opening)×H195mm/31kg |
